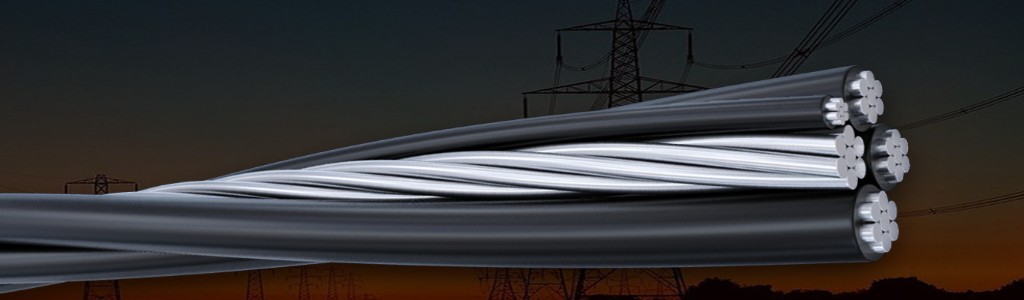

AB Cables of 1100 Volt Grade, are used for distributing power to individual consumers by Utilities Electricity Boards and Distributing authorities. The cables are suspended overhead using electrical poles. The cables can be tapped intermittently
from any required position, enabling them to be used in urban as well as rural areas.

Manufacturing Range: We Mfg. and supply Single Phase & Three Phase cables with or without Street Light conductor from 3core x 16 sqmm to largest size of 300 sqmm.

Standards: Cables are Mfg. and supplied as Per IS 14255 (Part I):1995.

Salient Features:
The phase conductor can be of single phase or three phases. A lighting conductor can be also incorporated for street lighting.
A messenger conductor supports the weight of the cable and keeps the assembly steady under tension. Phase conductors are made of concentrically stranded Aluminium Wires and Messenger conductors are made of Aluminium Alloy. Phase and lighting conductors may be insulated with XLPE compound. Messenger conductors are kept either bare or insulated. Phase and lighting conductors are twisted around the messenger conductor. Generally, the messenger acts as earth and neutral conductor.

Applications:

• Power Distributions.
• Secondary Side of Power/Distribution Transformer.
